1 · Split collar
Replaces the one-piece nutThe problem
The nut that holds the hose onto the pool wall fitting is a closed ring. Once the line is assembled, replacing a cracked or lost one means taking the whole plumbing apart — or cutting the pipe.
The part

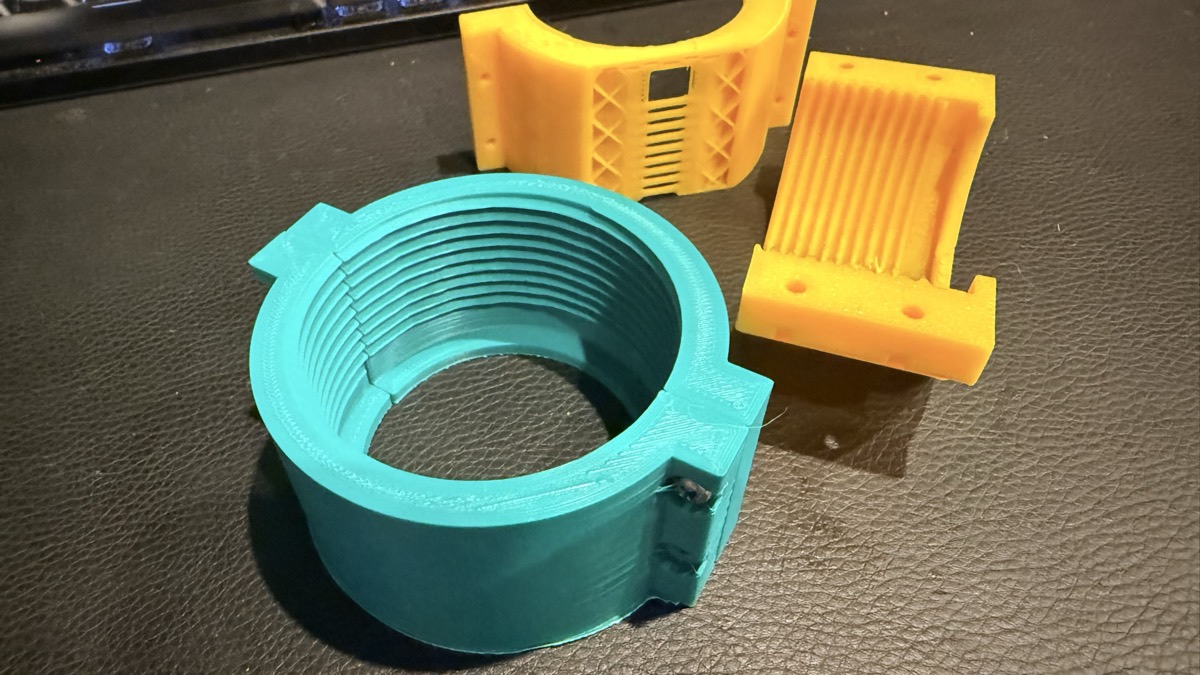

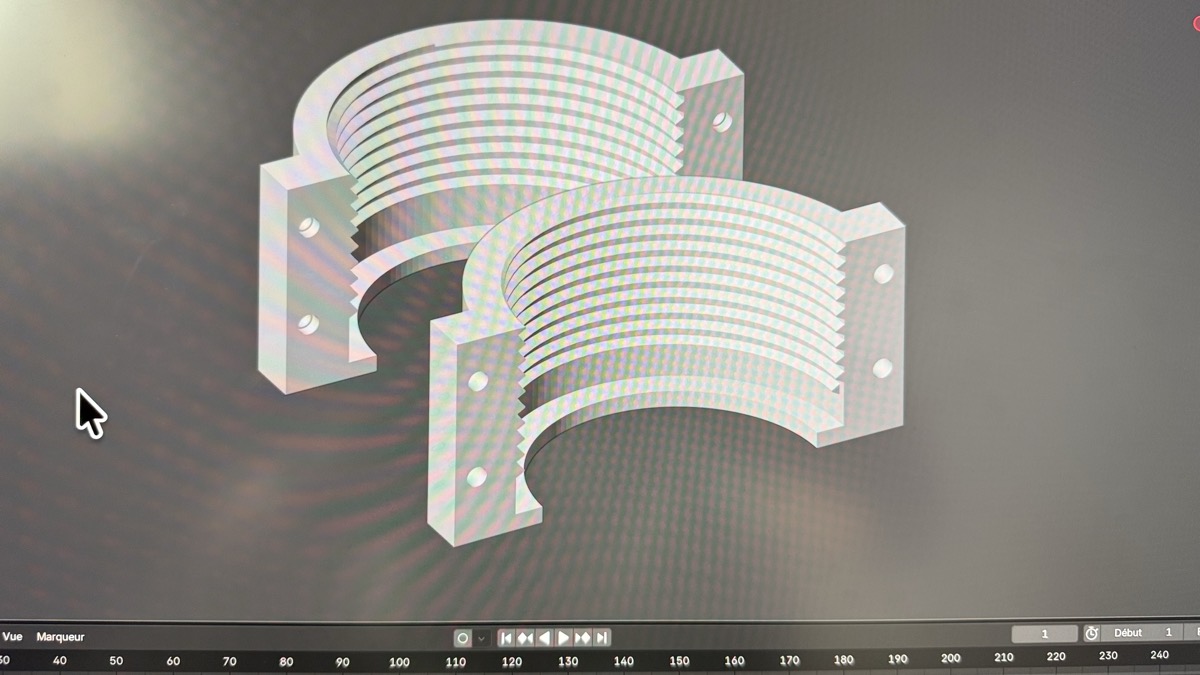

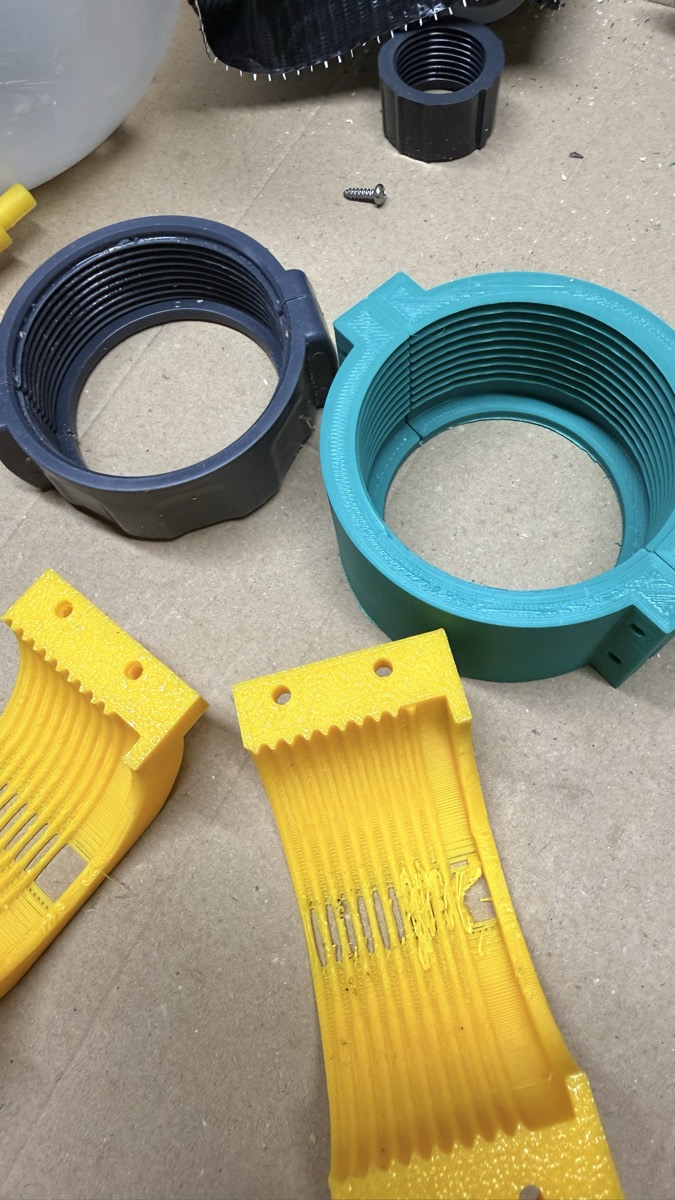

The same thread, but split into two half-shells with flanges. You slide them around the pipe where it already sits and screw the two halves together.
Result

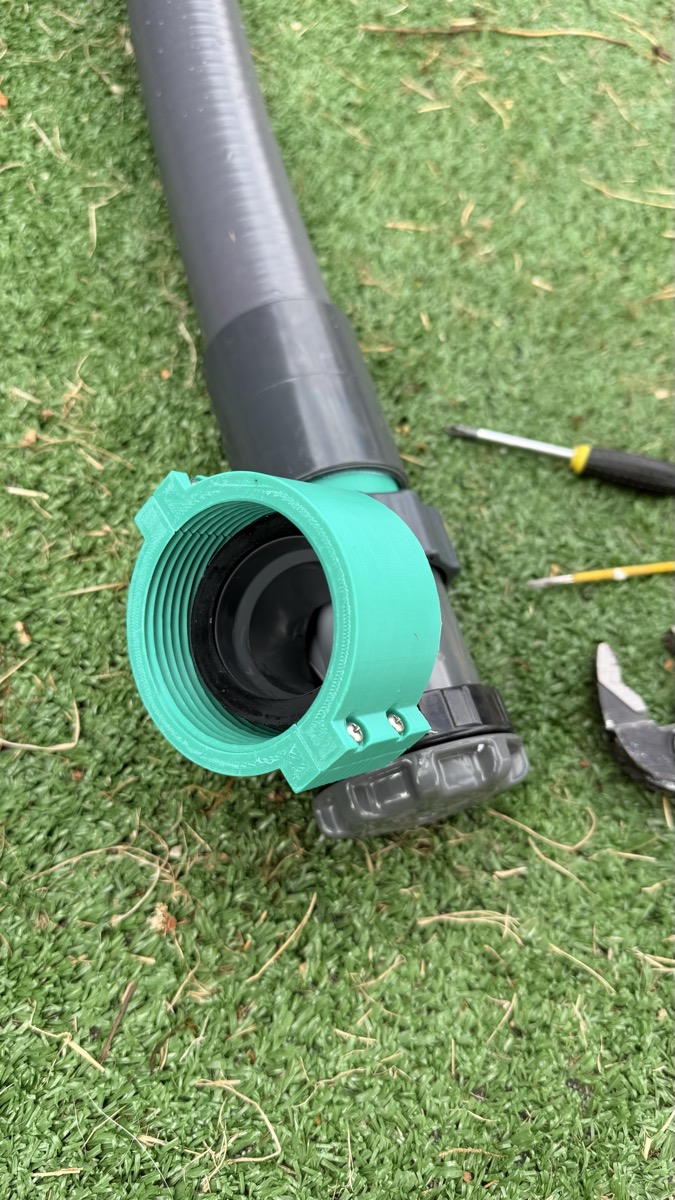

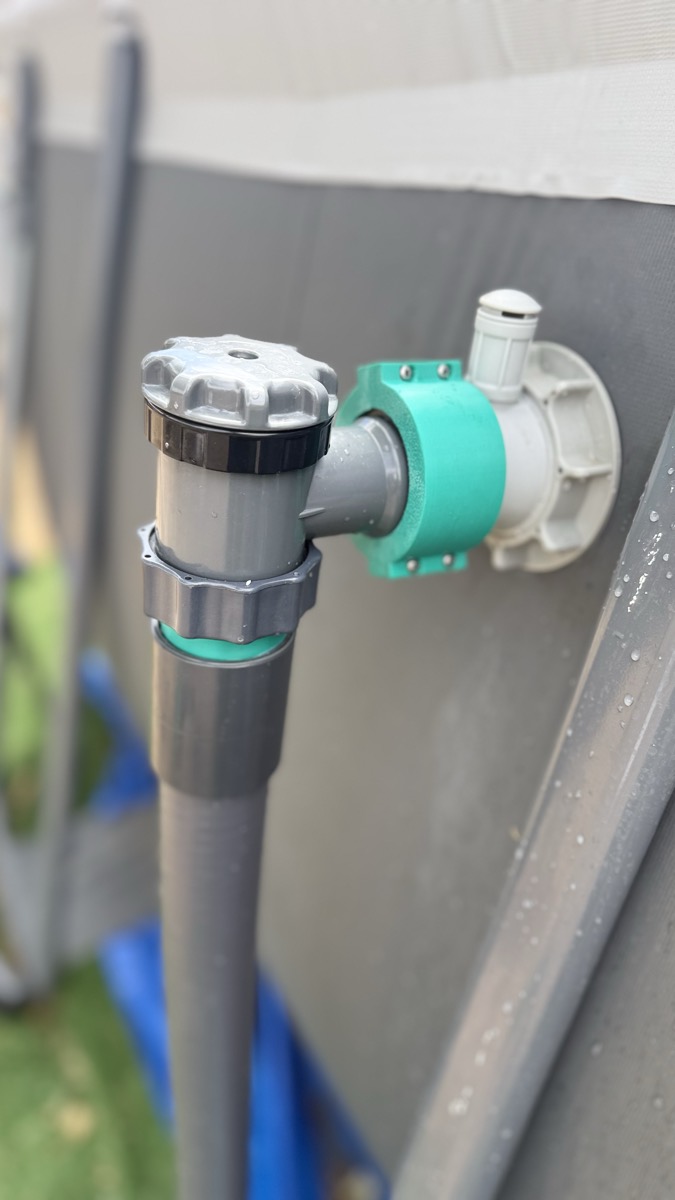

It clamps onto the existing hose and screws onto the wall fitting like the original. Fitted on the pool and holding, as shown in the last photo.
2 · Ø50 PVC adapter
Rigid PVC onto the Intex unionThe problem
The pool union nut is made for the Intex hose. Nothing in it takes standard rigid PVC, the pipe you actually want if you are plumbing the line properly.
The part

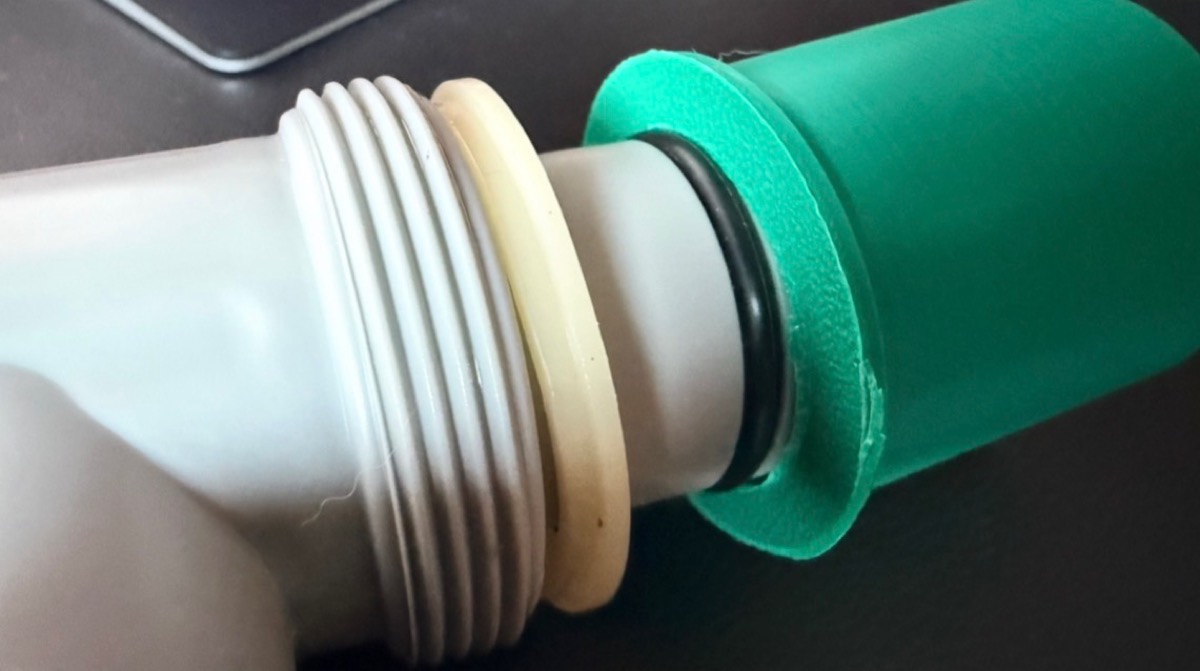

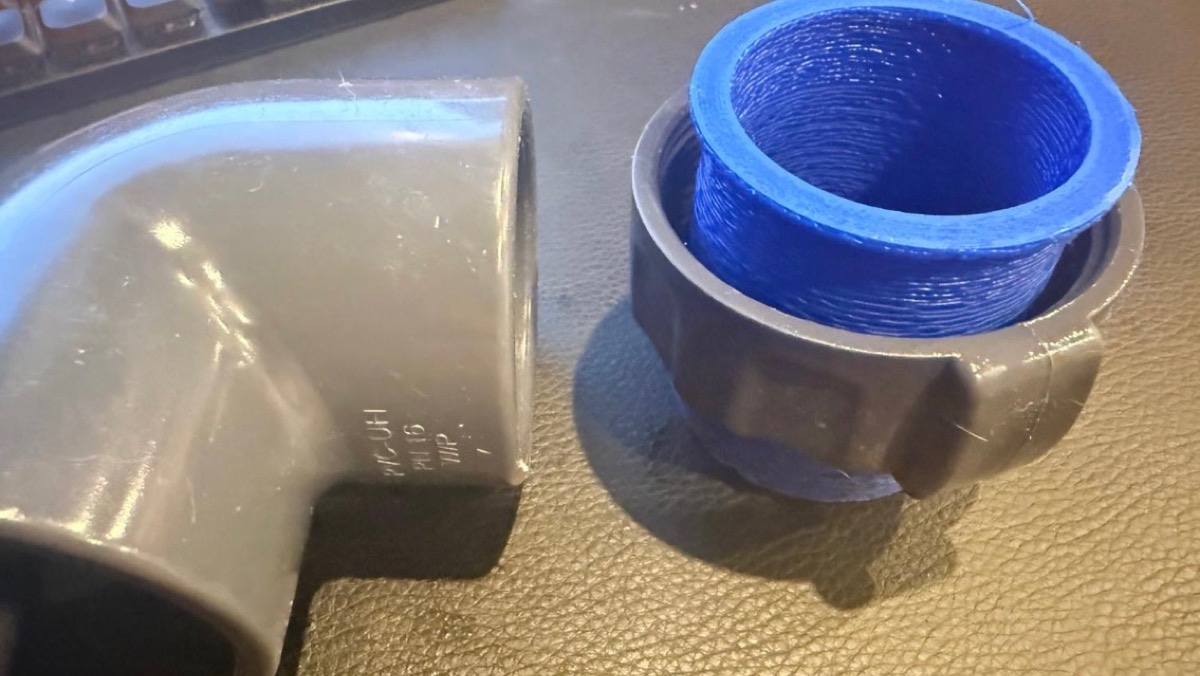

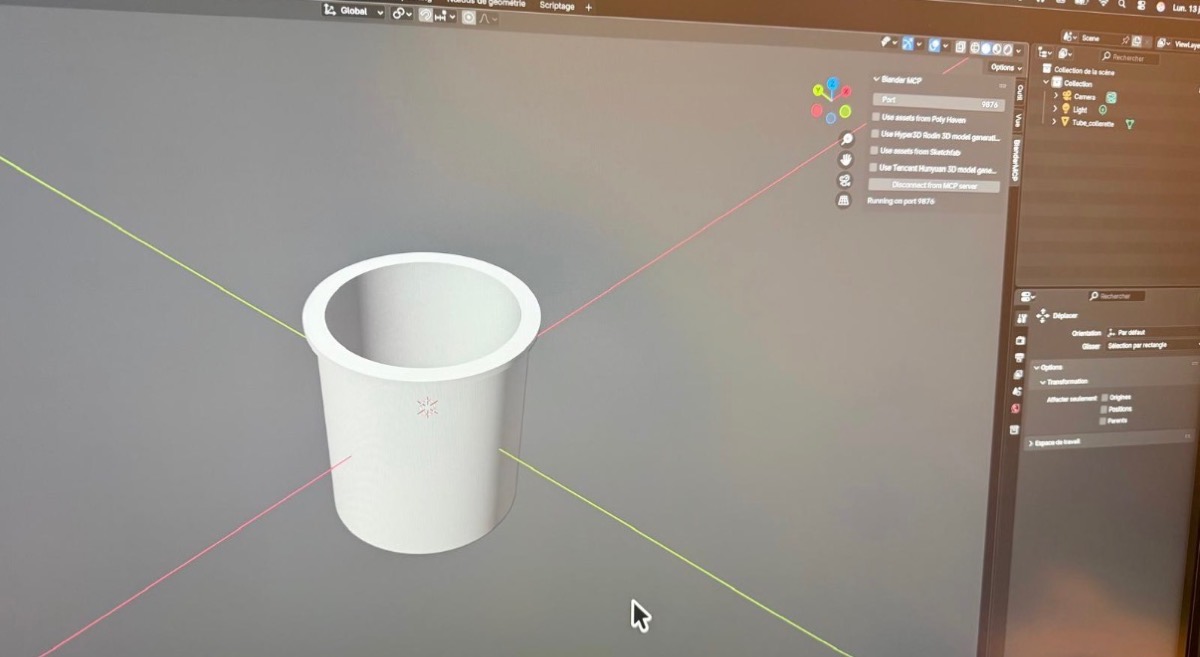

A sleeve with a shoulder: the shoulder is captured inside the Intex union nut, the body slides into a standard Ø50 PVC socket.
Result

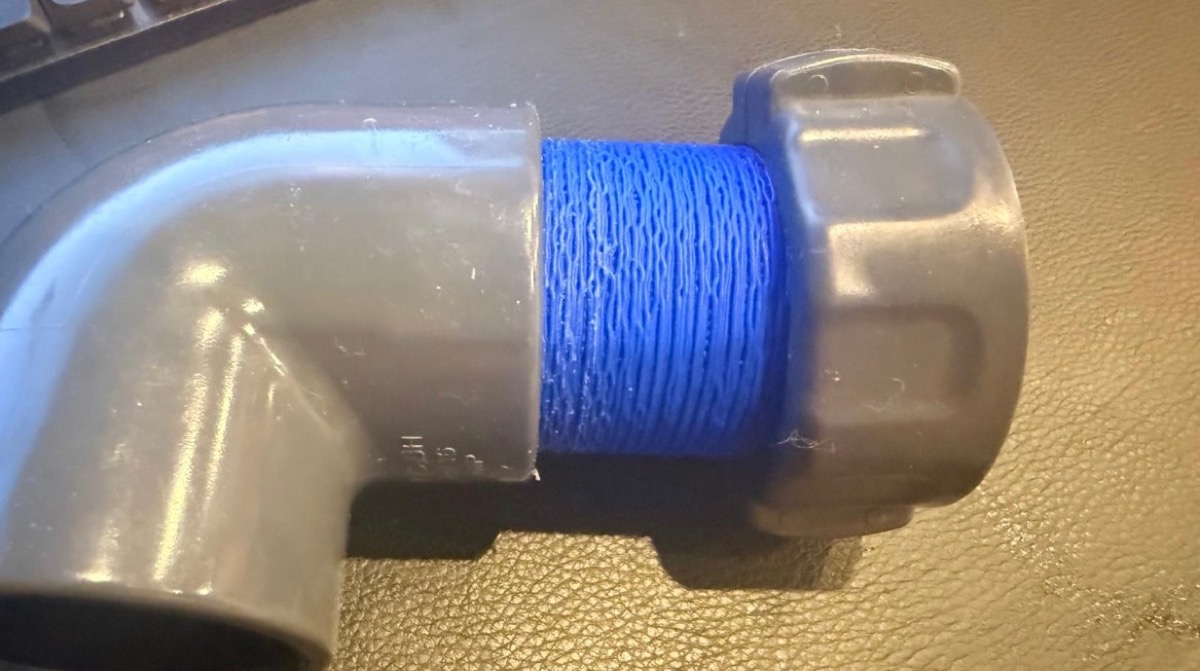

A PVC elbow screws onto the pool fitting through the nut, with no glue joint improvised on the pool side.

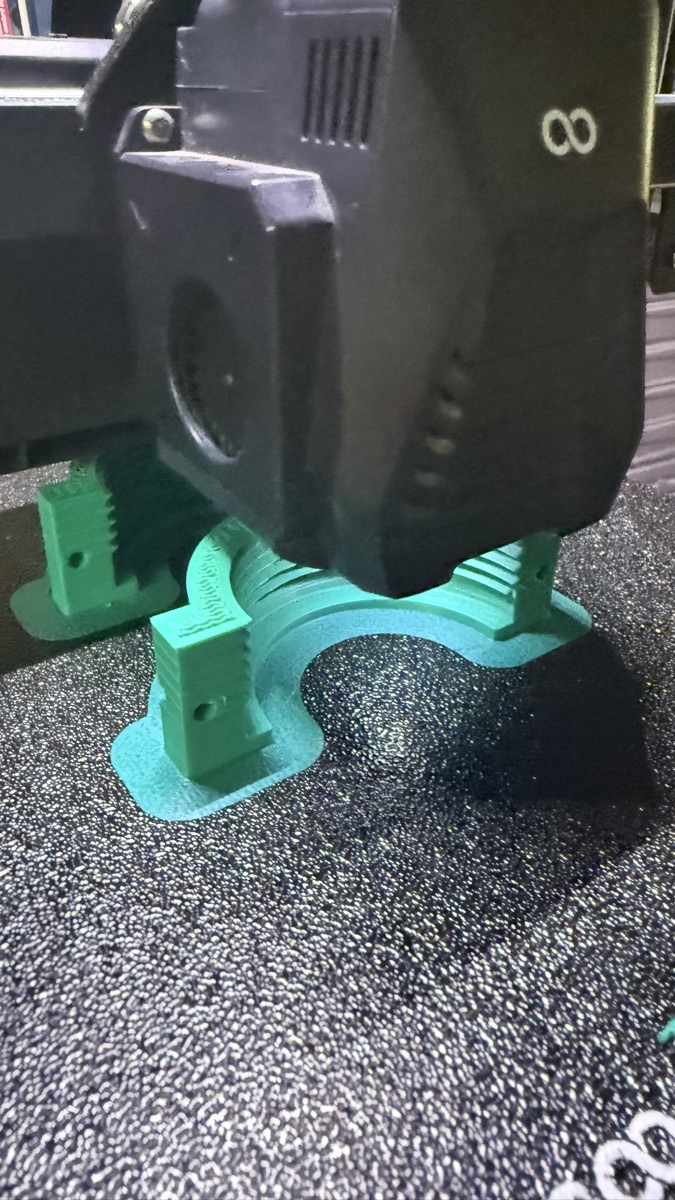

Printing
ASA · Elegoo Neptune 4 ProMaterial and temperatures
ASA, nozzle at 250 °C (255 °C on the first layer), bed at 100 °C (105 °C first layer), part cooling fan off — ASA warps and delaminates if you blow on it.
Layers and walls
0.15 mm layers, 1.6 mm walls and 40 % gyroid infill. These parts are threaded and take the load of a water line, so they are printed solid enough to be tapped and tightened.
Speed and adhesion
45 mm/s, 18 mm/s on the first layer, 35 mm/s on top and bottom surfaces. An 8 mm brim on the outside keeps the ring flat on the bed.
Printed and fitted on my own pool, shared as is — check the fit against your own hardware before you rely on it. Intex is a trademark of its owner; these parts are not affiliated with, nor endorsed by, Intex.
